1,體積小Small Size.
2,觸點負載大(80A) Contact load capacity up to 80A.
3,供汽車配套使用Suitable for automobile.
4,具有插入式和印刷線路板式兩種安裝方式 PC Board mounting and direct insert mounting available.

訂貨信息 Ordering information

CRST4141H--C-S-DC12V-L--P--R
 　　  1    　  2 3  　 4   5 　6  7

1,型號 Part number: CRST4141H             2,觸點形式 Contact arrangement:A:1A(80A);B:1B(70A);C:1C(70/80A)
3,封裝形式:S:試水式;無:防塵式   Enclosure: S:Sealed type; Z:Dust cover
4,線圈額定電壓Coil rated voltage(V):DC:6,9,12,24,48     5,線圈功耗 Coil power consumption:L:1.6W;Nil:1.8W
6,引出端 Terminals: P:PCB Type; Nil: Plug in type
7,線圈瞬態抑制:R:帶電阻;無:標準式 Coil transient suppression: R:with Resistance; Nil: Standard

觸點數據 Contact data

觸點形式 Contact Arrangement

1A(1H)(SPST NO);1B(SPST NC);1C(1Z)(SPDT)

觸點材料 Contact Material

AgNi, AgSnO₂, AgCdO

觸點負載(阻性) Conatct Rating(Resistive)

1A(80A/14VDC)  1B(70A/14VDC)   1C(NO:70A/80A/14VDC)

最大切換功率Max.Switching Power

980W

最大切換電壓 Max.Switching Voltage

75VDC  最大切換電流Max.Switching Current:80A

觸點阻性或壓降 Contact Resistance or Voltage Drop

≤30mΩ

壽命 Operation Life

電氣 Electrical

10⁵

機械 Mechanical

10⁷

線圈參數 Coil Parameter

線圈電壓
Coil voltage
(VDC)

線圈電阻
Coil Resistance
Ω±10%

吸合電壓VDC(最大)
Pick up Voltage VDC(Max)
(額定電壓的75%)
(75% of rated voltage)

釋放電壓VDC
Release voltage VDC(Min)
(額定電壓的5%)
(5% of rated voltage)

線圈功耗
Coil power consumption
(W)

動作時間
Operate Time
(mS)

釋放時間
Release Time
(mS)

額定
Rated

最大
Max

6

7.8

20

3.9

0.6

1.6

≤7

≤5

12

15.6

80

7.8

1.2

24

31.2

320

15.6

2.4

1.8

絕緣電阻 Insulation Resistance

最少 100MΩ min(at 500VDC)

介質耐壓 Dielectric Strength
斷開觸點間 Between Contacts
觸點與線圈間 Between Contacts and Coil

50Hz 500V
50Hz 500V

耐沖擊 Shock Resistance

147m/s2   11ms

抗振性 Vibration Resistance

10~40Hz 雙振幅 Double amplitude 1.5mm

引出端強度 Terminals Strength

8N  4N(PCB)

可焊性 Solderability

235±2℃   3±0.5s℃

環境溫度 Ambient Temperature

-40~125℃

相當濕度 Relative Humidity

85%(at 40℃)

質(重)量 Mass

46g/48g

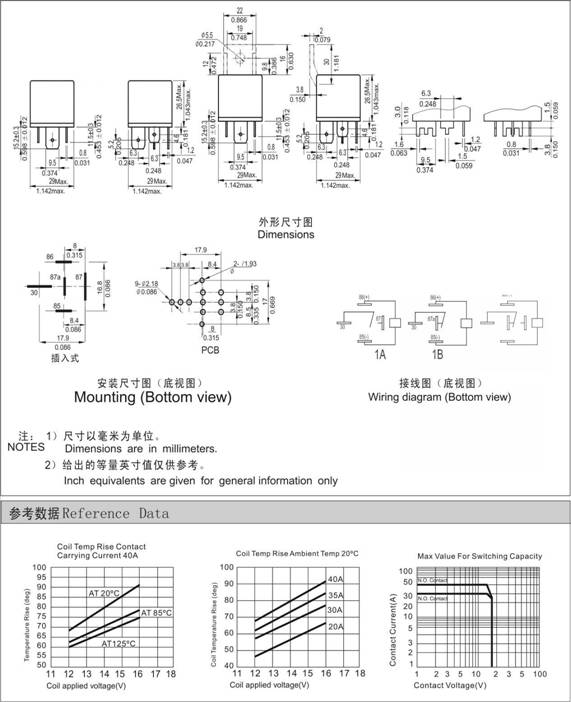

外形尺寸 Dimensions(mm/Inch)
