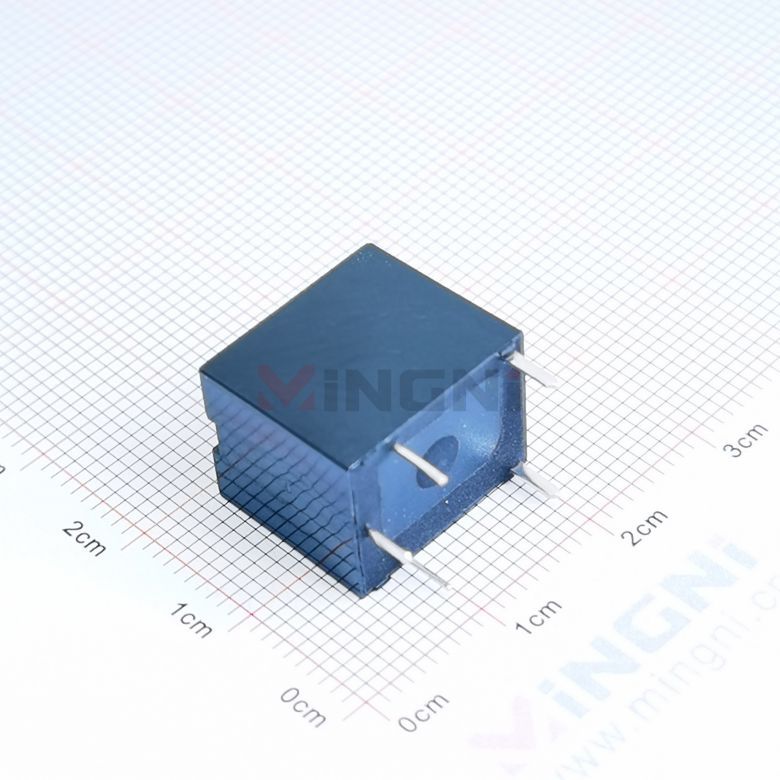

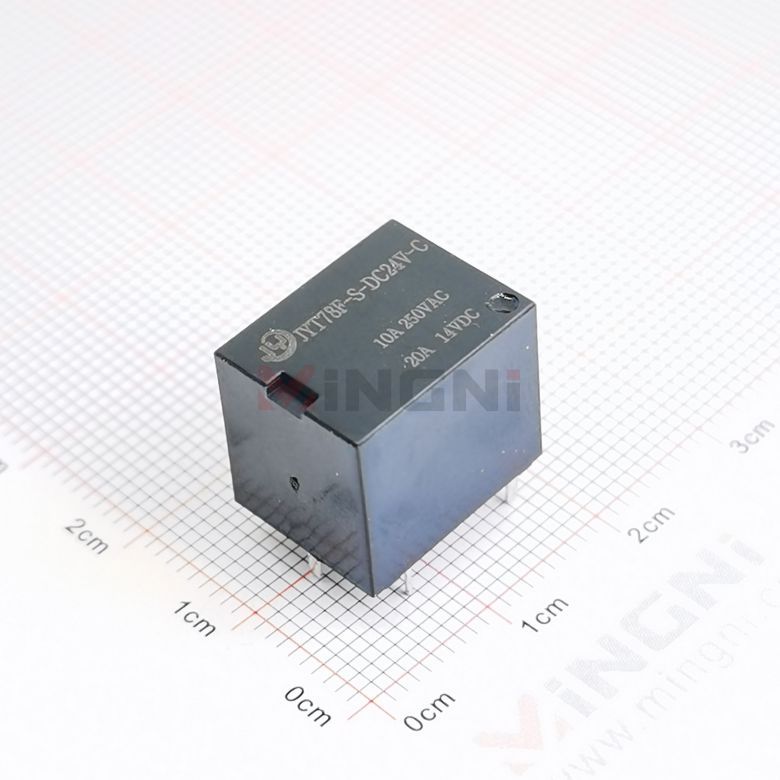

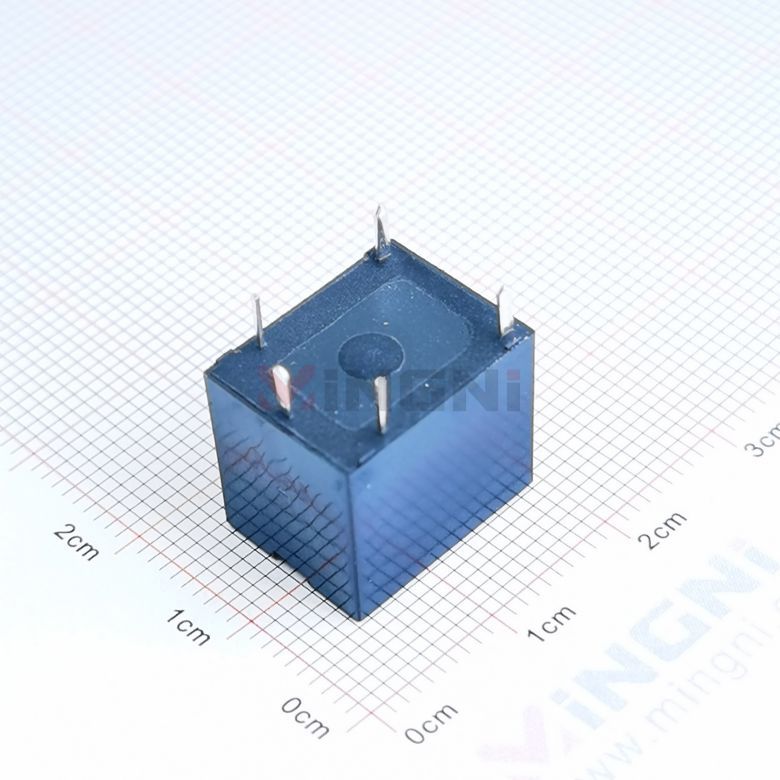

| 杰盈JYT78F-S-DC24V-C汽車繼電器 | ||||||
| 特點 | 高達20A觸點切換能力，具有一組常開、一組常閉、一組轉換和二組常開觸點形式，體積小,防沖擊，外形尺寸 (15.5X12,1X13.8) mm | |||||
| 典型用途 | 汽車門鎖馬達控制，家電，辦公設備，自動防盜報警器等。 | |||||
| 觸點參數 | ||||||
| Contact Form觸點形式 | A-1組常開,B-1組常閉.C-1組轉換 | 2A(株式動合點) | ||||
| Rating Load(Resistive)額定負數(阻性) | 20A 14VDC | 2X6A 14VDC | ||||
| Max.Switching Current最大切換電流 | 35A | 2X10A | ||||
| Max.Switching Voltage最大切換電壓 | 16VDC | 16VDC | ||||
| Max.Switching Power最大切換功率 | 280W | 2X160W | ||||
| 性能參數 | ||||||
| Contact Materials觸點材料 | Ag Alloy銀合金 | |||||
| Contact Resistance接觸電阻 | 100mQ Max | |||||
| Operate Time吸合時間 | 10ms.Max | |||||
| Release Time釋放時間 | 5ms.Max | |||||
| Insulation Resistance絕緣電阻 | 100MO Min.(DC500V) | |||||
| Initial Dielectric Strength介質耐壓 | between open contacts: 觸點與觸點間: | AC550V,50/60Hz 1Min | ||||
| between contacts and coil: 觸點與線圈間: | AC550V,50/60Hz 1Min | |||||
| Vibration Resistance抗振動 | Damage limits: 耐久: | 10~55Hz Double Amplitude雙振幅1.5mm | ||||
| Malfunction: 誤動作: | 10~55Hz Double Amplitude雙振幅1.5mm | |||||
| Shock Resistance抗沖擊 | Damage limits: 耐久: | 10G Min | ||||
| Malfunction: 誤動作: | 100G Min | |||||
| Life壽命 | Mechanical Life(10800 per hour) 機械壽命(每小時10800次) | 1x10 | ||||
| Electrical Life (600 per hour) 電氣壽命(每小時600次) | 1x10 | |||||
| Ambient Temperature環境溫度 | -40℃~+125'℃(No condensation)(不冷凝) | |||||
| Unit Weight單位重量 | 約Approx.6.0g | |||||
| 線圈參數 | ||||||
| Coil Nominal Voltage額定電壓 (VDC) | Nominal Current額定電流±10%(mA) | Coll Resistance線圈電阻±10%(Q) | Max. Continuous Voltage最大連續外加電壓 | Pick-Up Voltage吸合電壓 (Max) | Drop-Out Voltage釋放電壓 (Min) | Rated power額定功率 |
| 6 | 60.00 | 100 | Coil Nominal Voltage 110%額定電壓的 110% | Coil Nominal Voltage 70% 額定電壓的 70% | Coil Nominal Voltage 10% 額定電壓的 10% | 0.36W |
| 9 | 40.00 | 225 | ||||
| 12 | 30.00 | 400 | ||||
| 24 | 20.00 | 1600 | ||||
| 6 | 100.00 | 60 | Coil Nominal Voltage 110%額定電壓的 110% | Coil Nominal Voltage 70% 額定電壓的 70% | Coil Nominal Voltage 10% 額定電壓的 10% | 0.6W |
| 9 | 66.67 | 135 | ||||
| 12 | 50.00 | 240 | ||||
| 24 | 25.00 | 960 | ||||
| 6 | 130.00 | 45 | Coil Nominal Voltage 110% 額定電壓的 110% | Coil Nominal Voltage 70% 額定電壓的 70% | Coil Nominal Voltage 10% 額定壓的 10% | 0.8W |
| 9 | 90.00 | 102 | ||||
| 12 | 70.00 | 180 | ||||
| 24 | 30.00 | 720 | ||||

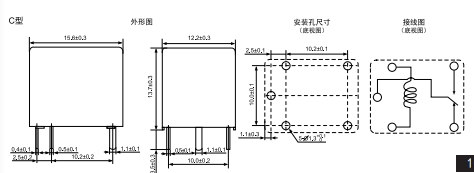

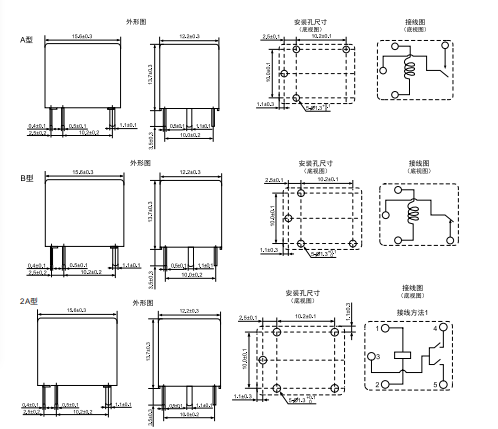

外形圖、接線、安裝孔尺寸圖

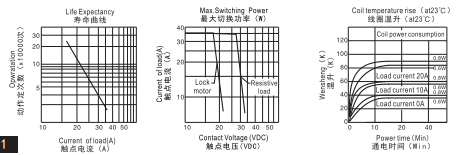

性能曲線
