1,負載大,切換功率大 Heavy load,suitable for heavy power reverse.
2,體積小,可用于高密度安裝 Small size,suitable for high-density mounting.
3,用于電視遙控器,復印機,售貨機和空調機.
Suitable for remote control TV set,copy machine,sales machine and air conditioner etc.

訂貨信息 Ordering information

CRST36F--C-S-DC12V-L
    1    2 3   4  5

1,型號 Part number: CRST36F     2,觸點形式 Contact arrangement  A:1A;C:1C
3,封裝形式:S:試水式;無:防塵式   Enclosure: S:Sealed type; Z:Dust cover
4,線圈額定電壓 Coil Rated voltage(V):DC:5,6,9,12,24,48
5,線圈功耗Coil power consumption: 無Nil 0.53W; L:0.25W

觸點數據 Contact data

觸點形式 Contact Arrangement

1A(SPST NO)   1C(1Z)(SPDT)

觸點材料 Contact Material

AgSnO₂    AgCdO

觸點負載(阻性) Conatct Rating(Resistive)

10A/250VAC;30VDC

最大切換功率Max.Switching Power

330W    2500VA

最大切換電壓 Max.Switching Voltage

30VDC  277VAC 最大切換電流Max.Switching Current:10A

觸點阻性或壓降 Contact Resistance or Voltage Drop

≤100mΩ

壽命 Operation Life

電氣 Electrical

10⁵

機械 Mechanical

10⁷

線圈參數 Coil Parameter

線圈電壓
Coil voltage
(VDC)

線圈電阻
Coil Resistance
Ω±10%

吸合電壓VDC(最大)
Pick up Voltage VDC(Max)
(額定電壓的75%)
(75% of rated voltage)

釋放電壓VDC
Release voltage VDC(Min)
(額定電壓的5%)
(5% of rated voltage)

線圈功耗
Coil power consumption
(W)

動作時間
Operate Time
(mS)

釋放時間
Release Time
(mS)

額定
Rated

最大
Max

5

6.5

100

3.75

0.25

0.25

≤15

≤5

9

11.7

325

6.75

0.45

12

15.6

575

9.00

0.60

24

31.2

2310

18.0

1.20

5

6.5

47

3.75

0.25

0.53

9

11.7

155

6.75

0.45

12

15.6

270

9.00

0.60

24

31.2

1080

18.0

1.20

絕緣電阻 Insulation Resistance

最少 1000MΩ min(at500V)

介質耐壓 Dielectric Strength
斷開觸點間 Between Contacts
觸點與線圈間 Between Contacts and Coil

50Hz 1000V
50Hz  4000V

耐沖擊 Shock Resistance

100m/s2   11ms

抗振性 Vibration Resistance

10~55Hz 雙振幅 Double amplitude 1.5mm

引出端強度 Terminals Strength

10N

可焊性 Solderability

235±2℃   3±0.5s℃

環境溫度 Ambient Temperature

-40~70℃

相當濕度 Relative Humidity

35%~85%(at 35℃)

質(重)量 Mass

12g

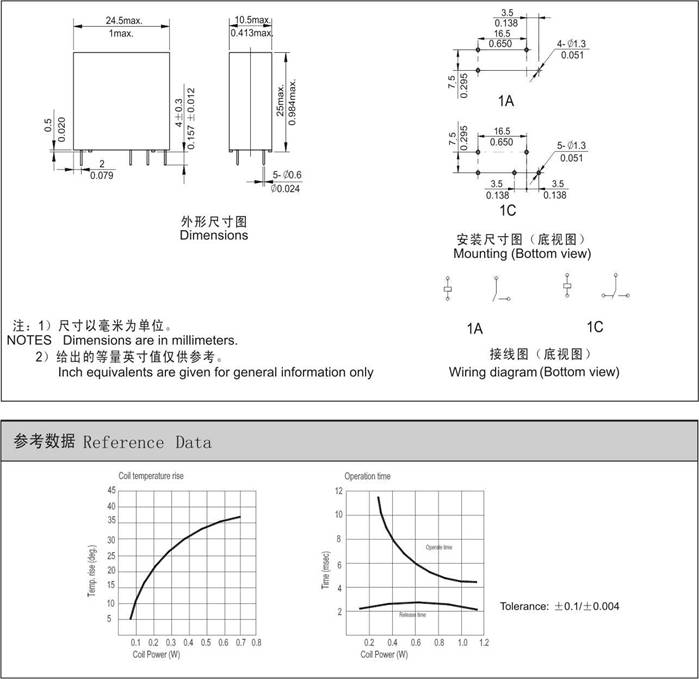

外形尺寸 Dimensions(mm/Inch)
