1,線圈功耗低 Low coil power consumption.
2,功耗低 Low coil consumption.
3,體積小，重量輕 Small size,Light weight .
4,可直接焊接在印刷細路板中 PC board mounting.
5,可用于自動裝置,通訊設備,無線電遙控,聲控玩具 Suitable for automation facilities,telecommunication equipment,household electrical appliance,wireless radio remote control,sound control toys application etc

訂貨信息 Ordering information

CRST115F--2C---S-12 08--L
   1      2  3 4  5  6

1,型號 Part number: CRST115F
2,觸點形式 Contact arrangement:  1A:1A(SPST);2A:2A(DPST);1C:1C(SPDT);2C:2C(DPDT)
3,封裝形式:S:試水式;無:防塵式   Enclosure: S:Sealed type; Nil:Dust cover
4,線圈額定電壓 Coil Rated voltage(V):DC:3,5,6,9,12,24,48
5,觸點電流 Coil rated voltage(V):8A,12A,16A
6,線圈功耗Coil power consumption:無Nil 0.72W;低功耗L:0.41W

觸點數據 Contact data

觸點形式 Contact Arrangement

1A(1H)(SPST NO);2A(DPST NO);1C(1Z)(SPDT);2C(2Z)(DPDT)

觸點材料 Contact Material

AgCdO, AgSnO₂

觸點負載(阻性) Conatct Rating(Resistive)

Contact Arrangement

1A,1C

1A,1C

2A,2C

阻性 Resistive

16A/250VAC;30VDC
1A:20A/120VAC

12A/250VAC;30VDC

8A/250VAC;30VDC

感性 Inductive

8A/250VA;30VDC

6A/250VAC;5A/30VDC

4A/250VAC,3A/30VDC

最大切換功率Max.Switching Power

阻性 Resistive

480W  4000VA

300W  2500VA

150W  1250VA

感性 Inductive

240W  2000VA

150W  1875VA

90W   500VA

最大切換電壓 Max.Switching Voltage

125VDC  440VAC最大切換電流Max.Switching Current:20A

觸點阻性或壓降
Contact Resistance or Voltage Drop

≤100mΩ

壽命 Operation Life

電氣 Electrical

10⁵

機械 Mechanical

10⁷

線圈參數 Coil Parameter

線圈電壓
Coil voltage
(VDC)

線圈電阻
Coil Resistance
Ω±10%

吸合電壓VDC(最大)
Pick up Voltage VDC(Max)
(額定電壓的70%)
(70% of rated voltage)

釋放電壓VDC
Release voltage VDC(Min)
(額定電壓的10%)
(10% of rated voltage)

線圈功耗
Coil power consumption
(W)

動作時間
Operate Time
(mS)

釋放時間
Release Time
(mS)

額定
Rated

最大
Max

5

6.5

61

3.5

0.5

0.41

≤10

≤5

12

15.6

351

8.4

1.2

24

21.2

1405

16.8

2.4

12

15.6

200

8.4

1.2

0.72

24

31.2

800

16.8

2.4

絕緣電阻 Insulation Resistance

最小 1000MΩ min(at 500VDC)

介質耐壓 Dielectric Strength
斷開觸點間 Between Contacts
觸點與線圈間 Between Contacts and Coil

50Hz 500V
50Hz 500V

耐沖擊 Shock Resistance

100m/s²   11ms

抗振性 Vibration Resistance

10~55Hz 雙振幅 Double amplitude 1.5mm

引出端強度 Terminals Strength

10N

可焊性 Solderability

235±2℃   3±0.5s℃

環境溫度 Ambient Temperature

-40~85℃

相當濕度 Relative Humidity

85%(at 40℃)

質(重)量 Mass

11g~12g

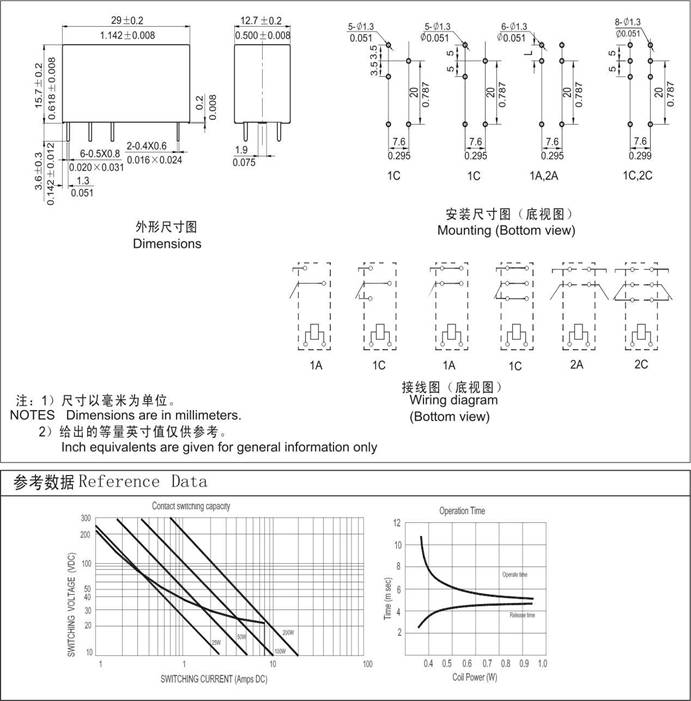

外形尺寸 Dimensions(mm/Inch)
