1,線圈功耗低 Low coil power consumption.
2,體積小，重量輕 Small size,Light weight .
3,可直接焊接在印刷細路板中 PC board mounting.
4,用于家用電器,自動化系統,電子設備,儀器儀表,通訊裝置,遙控裝置等, Suitable for household electrical appliances,automation system,electronic equipment,instrument,meter,telecommunication facilities and remote control facilities.

訂貨信息 Ordering information

CRST19F--2C--DC12V-L
   1     2    3   4

1,型號 Part number: CRST19F     2,觸點形式 Contact arrangement 2C:2C
3,線圈額定電壓 Coil Rated voltage(V):DC:3,5,6,9,12,24
4,線圈功耗Coil power consumption:無Nil 0.2W(標準Standard);L:0.15W(高靈敏度High sensitivity)

觸點數據 Contact data

觸點形式 Contact Arrangement

2C(2Z)(DPDT)

觸點材料 Contact Material

AgNi, Ag

觸點負載(阻性) Conatct Rating(Resistive)

3A/28VDC,2A30VDC;0.5A,1A/125VAC,24VDC

最大切換功率Max.Switching Power

84W  125VA

最大切換電壓 Max.Switching Voltage

30VDC  220VAC 最大切換電流Max.Switching Current:3A

觸點阻性或壓降 Contact Resistance or Voltage Drop

≤50mΩ

壽命 Operation Life

電氣 Electrical

10⁵

機械 Mechanical

10⁷

線圈參數 Coil Parameter

線圈電壓
Coil voltage
(VDC)

線圈電阻
Coil Resistance
Ω±10%

吸合電壓VDC(最大)
Pick up Voltage VDC(Max)
(額定電壓的75%)
(75% of rated voltage)

釋放電壓VDC
Release voltage VDC(Min)
(額定電壓的10%)
(10% of rated voltage)

線圈功耗
Coil power consumption
(W)

動作時間
Operate Time
(mS)

釋放時間
Release Time
(mS)

額定
Rated

最大
Max

5

6.5

166.7

3.50

0.5

0.15

≤6

≤5

6

7.8

240.0

4.20

0.6

12

15.6

960.0

8.40

1.2

24

31.2

3840.0

18.0

2.4

5

6.5

125.0

3.50

0.5

0.20

6

7.8

405.0

4.20

0.6

12

15.6

720.0

8.40

1.2

24

31.2

2880

18.0

2.4

絕緣電阻 Insulation Resistance

最少 1000MΩ min(at 500V)

介質耐壓 Dielectric Strength
斷開觸點間 Between Contacts
觸點與線圈間 Between Contacts and Coil

50Hz 500V
50Hz 1000V

耐沖擊 Shock Resistance

500m/s2   11ms

抗振性 Vibration Resistance

10~70Hz 雙振幅 Double amplitude 1.5mm

引出端強度 Terminals Strength

5N

可焊性 Solderability

235±2℃   3±0.5s℃

環境溫度 Ambient Temperature

-30~70℃

相當濕度 Relative Humidity

85%(at 40℃)

質(重)量 Mass

5g

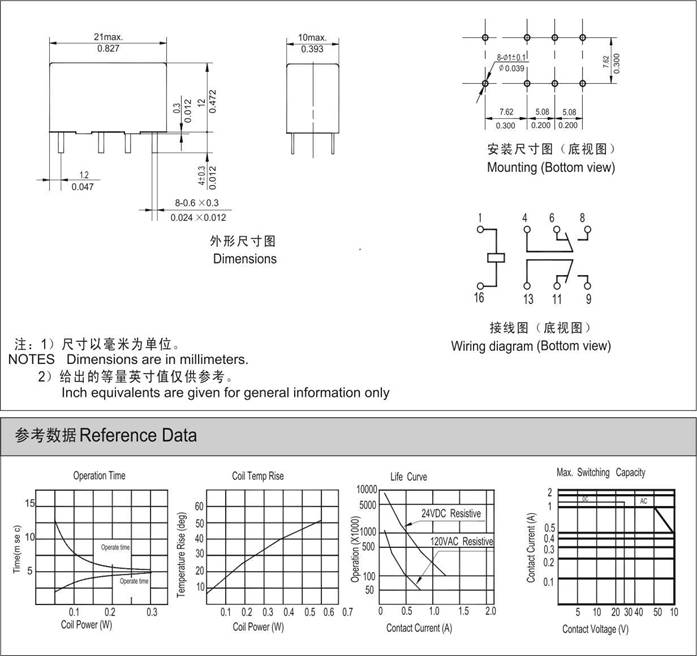

外形尺寸 Dimensions(mm/Inch)
